FDMS9410L-F085 - 40V 50A N-Channel MOSFET

FDMS9410L-F085 Description

FDMS9410L-F085 N-Channel Logic Level PowerTrench® MOSFET FDMS9410L-F085 N-Channel Logic Level PowerTrench® MOSFET 40 V, 50 A, 4.1 mΩ .

FDMS9410L-F085 Features

* Typical RDS(on) = 3.4 mΩ at VGS = 10V, ID = 50 A
* Typical Qg(tot) = 30 nC at VGS = 10V, ID = 50 A
* UIS Capability
* RoHS Compliant

FDMS9410L-F085 Applications

* Automotive Engine Control
* PowerTrain Management
* Solenoid and Motor Drivers
* Electronic Steering
* Integrated Starter/Alternator
* Distributed Power Architectures and VRM
* Primary Switch for 12V Systems MOSFET Maximum Ratings TJ = 25°C

📥 Download Datasheet

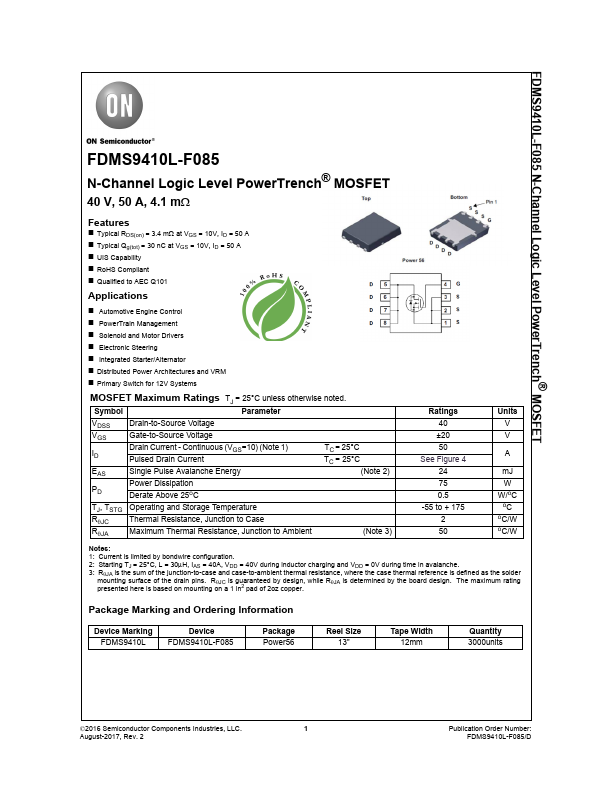

Preview of FDMS9410L-F085 PDF

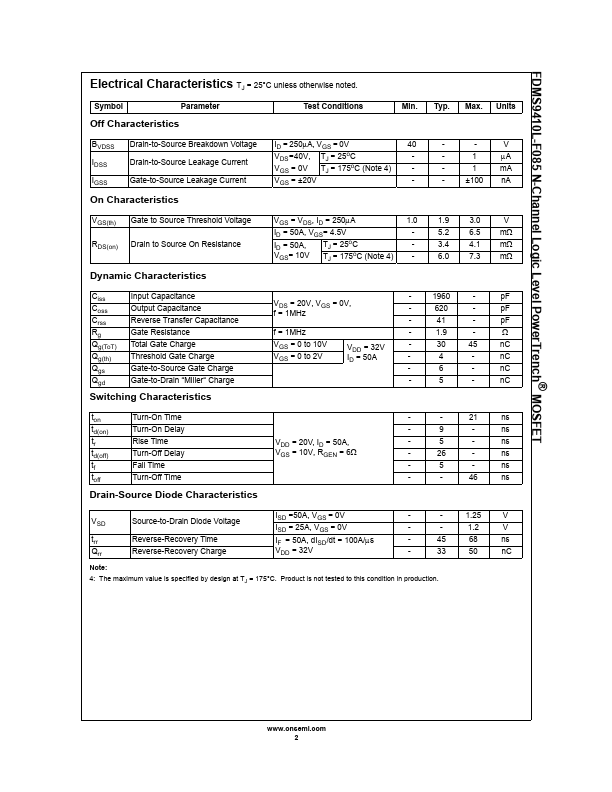

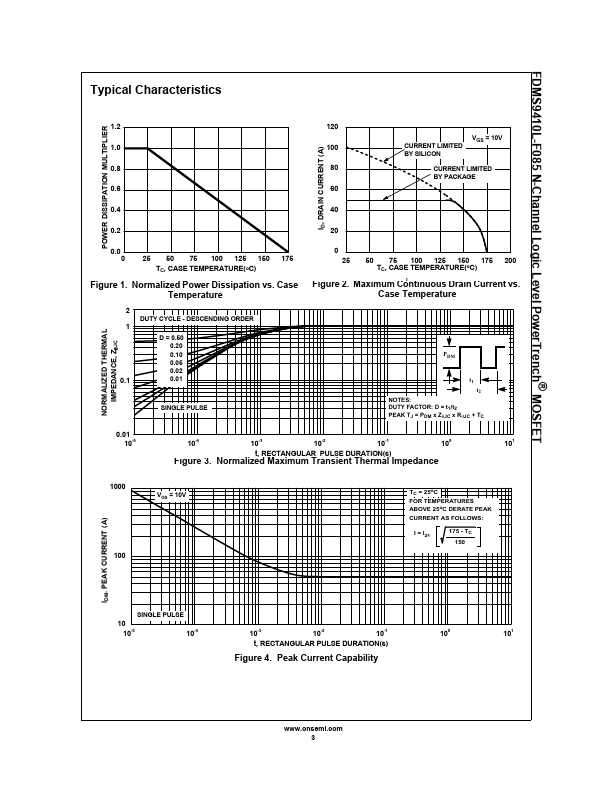

datasheet Preview Page 2 datasheet Preview Page 3
