MR27V6402G - One Time PROM

Name: MR27V6402G
SKU: MR27V6402G-525093

OKI electronic componets

📥 Download Datasheet

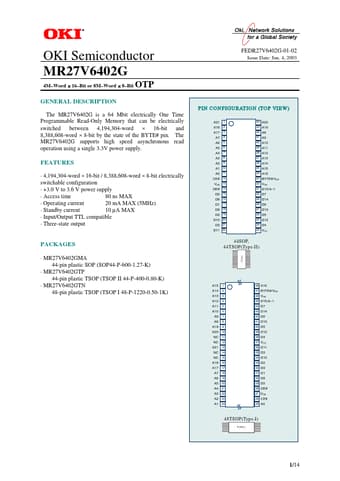

MR27V6402G Datasheet Preview — Preview of MR27V6402G PDF

Datasheet Details

Part number	MR27V6402G
Manufacturer	OKI electronic componets
File Size	149.66 KB
Description	One Time PROM
Datasheet	MR27V6402G_OKIelectroniccomponets.pdf

MR27V6402G Product details

Description

The MR27V6402G is a 64 Mbit electrically One Time Programmable Read-Only Memory that can be electrically switched between 4,194,304-word × 16-bit and 8,388,608-word × 8-bit by the state of the BYTE# pin.

Features

4,194,304-word × 16-bit / 8,388,608-word × 8-bit electrically switchable configuration.
+3.0 V to 3.6 V power supply.
Access time 80 ns MAX.
Operating current 20 mA MAX (5MHz).
Standby current 10 µA MAX.
Input/Output TTL compatible.
Three-state output A21 A18 A17 A7 A6 A5 A4 A3 A2 A1 A0 CE# VSS OE# D0 D8 D1 D9 D2 D10 D3 D11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 A20 A19 A8.
