MR27V1652D - Page Mode One Time PROM

OKI electronic componets

📥 Download Datasheet

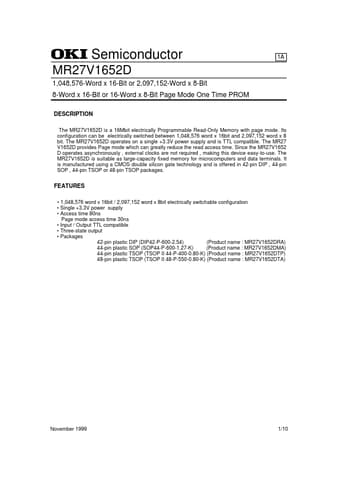

MR27V1652D Datasheet Preview — Preview of MR27V1652D PDF

Datasheet Details

Part number	MR27V1652D
Manufacturer	OKI electronic componets
File Size	57.16 KB
Description	Page Mode One Time PROM
Datasheet	MR27V1652D_OKIelectroniccomponets.pdf

MR27V1652D Product details

Description

1A The MR27V1652D is a 16Mbit electrically Programmable Read-Only Memory with page mode.Its configuration can be electrically switched between 1,048,576 word x 16bit and 2,097,152 word x 8 bit.The MR27V1652D operates on a single +3.3V power supply and is TTL compatible.The MR27 V1652D provides Page mode which can greatly reduce the read access time.Since the MR27V1652 D operates asynchronously , external clocks are not required , making this device easy-to-use.The MR27V1652D is suitable a

Features

1,048,576 word x 16bit / 2,097,152 word x 8bit electrically switchable configuration.
Single +3.3V power supply.
Access time 80ns Page mode access time 30ns.
Input / Output TTL compatible.
Three-state output.
Packages 42-pin plastic DIP (DIP42-P-600-2.54) (Product name : MR27V1652DRA) 44-pin plastic SOP (SOP44-P-600-1.27-K) (Product name : MR27V1652DMA) 44-pin plastic TSOP (TSOP II 44-P-400-0.80-K) (Product name : MR27V1652DTP) 48-pin plasti.
