MR27V6452D - 8-Word x 16-Bit or 16-Word x 8-Bit Page Mode One Time PROM

OKI electronic

📥 Download Datasheet

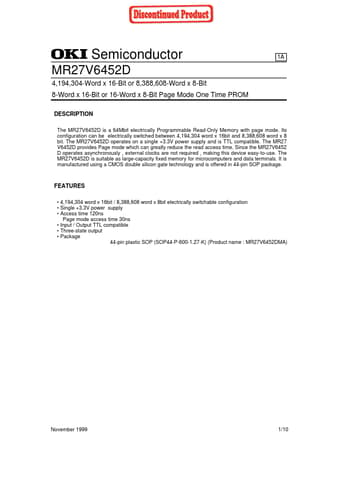

MR27V6452D Datasheet Preview — Preview of MR27V6452D PDF

Datasheet Details

Part number	MR27V6452D
Manufacturer	OKI electronic
File Size	144.38 KB
Description	8-Word x 16-Bit or 16-Word x 8-Bit Page Mode One Time PROM
Datasheet	MR27V6452D_OKIelectronic.pdf

MR27V6452D Product details

Description

1A The MR27V6452D is a 64Mbit electrically Programmable Read-Only Memory with page mode.Its configuration can be electrically switched between 4,194,304 word x 16bit and 8,388,608 word x 8 bit.The MR27V6452D operates on a single +3.3V power supply and is TTL compatible.The MR27 V6452D provides Page mode which can greatly reduce the read access time.Since the MR27V6452 D operates asynchronously , external clocks are not required , making this device easy-to-use.The MR27V6452D is suitable a

Features

4,194,304 word x 16bit / 8,388,608 word x 8bit electrically switchable configuration.
Single +3.3V power supply.
Access time 120ns Page mode access time 30ns.
Input / Output TTL compatible.
Three-state output.
Package 44-pin plastic SOP (SOP44-P-600-1.27-K) (Product name : MR27V6452DMA) November 1999 1/10 Datasheet pdf - http://www. DataSheet4U. net/ www. DataSheet. co. kr MR27V6452D PIN.
