MR27V6454G - 4M-Word x 16-Bit P2ROM

OKI electronic

📥 Download Datasheet

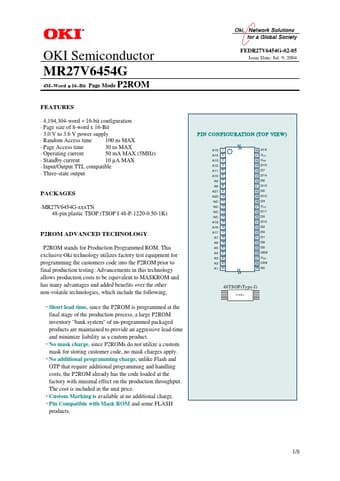

MR27V6454G Datasheet Preview — Preview of MR27V6454G PDF

Datasheet Details

Part number	MR27V6454G
Manufacturer	OKI electronic
File Size	146.76 KB
Description	4M-Word x 16-Bit P2ROM
Datasheet	MR27V6454G_OKIelectronic.pdf

MR27V6454G Product details

Description

Pin name A0 to A21 D0 to D15 CE# OE# VCC VSS NC Address inputs Data outputs Chip enable input Output enable input Power supply voltage Ground No connect Functions 2/8 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr FEDR27V6454G-02-05 OKI Semiconductor MR27V6454G / P2ROM FUNCTION TABLE Mode Read Output disable Standby ∗: Don’t Care (H or L) CE# L L H OE# L H ∗ 3.3 V VCC D0 to D15 Dout Hi Z Hi Z ABSOLUTE MAXIMUM RATINGS Parameter Operating temperature under

Features

4,194,304-word × 16-bit configuration.
Page size of 8-word x 16-Bit.
3.0 V to 3.6 V power supply.
Random Access time 100 ns MAX.
Page Access time 30 ns MAX.
Operating current 50 mA MAX (5MHz).
Standby current 10 µA MAX.
Input/Output TTL compatible.
Three-state output PIN.
