LM26LV - LLP-6 Factory Preset Temperature Switch and Temperature Sensor

National Semiconductor

The LM26LV by National Semiconductor is a LLP-6 Factory Preset Temperature Switch and Temperature Sensor. Below is the official datasheet preview.

📥 Download Datasheet

LM26LV LLP-6 Factory Preset Temperature Switch and Temperature Sensor by National Semiconductor - Datasheet Preview — Official preview page of the **LM26LV** LLP-6 Factory Preset Temperature Switch and Temperature Sensor datasheet (National Semiconductor).

Datasheet Details

Part number	LM26LV
Manufacturer	National Semiconductor
File Size	333.32 KB
Description	LLP-6 Factory Preset Temperature Switch and Temperature Sensor
Datasheet	LM26LV-NationalSemiconductor.pdf

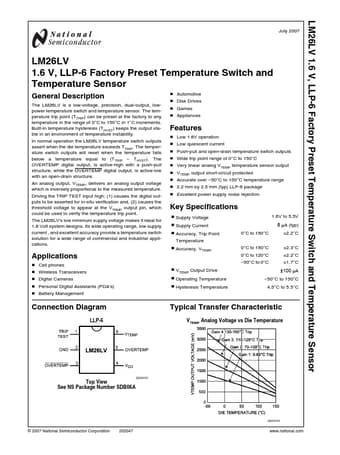

Additional preview pages of the LM26LV datasheet.

LM26LV Product details

Description

The LM26LV is a low-voltage, precision, dual-output, lowpower temperature switch and temperature sensor.

Features

Low 1.6V operation.
Low quiescent current.
Push-pull and open-drain temperature switch outputs.
Wide trip point range of 0°C to 150°C.
Very linear analog VTEMP temperature sensor output.
VTEMP output short-circuit protected.
Accurate over.
50°C to 150°C temperature range.
2.2 mm by 2.5 mm (typ) LLP-6 package.
Excellent power supply noise rejection Key Specifications.
Supply Voltage.
Supply Current.
Accuracy, Trip Point Temper.
