LM2601616A - 2.6 inch 16x16 Dot Matrix LED Display

LIGHTKEY

📥 Download Datasheet

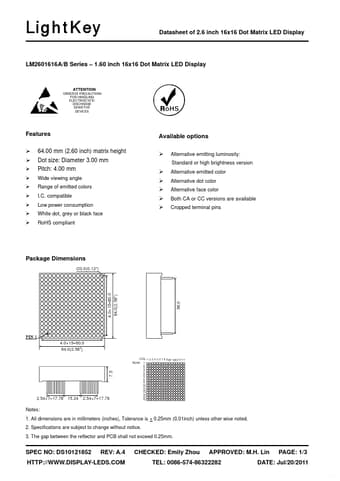

LM2601616A Datasheet Preview — Preview of LM2601616A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LM2601616A
Manufacturer	LIGHTKEY
File Size	194.00 KB
Description	2.6 inch 16x16 Dot Matrix LED Display
Datasheet	LM2601616A-LIGHTKEY.pdf

LM2601616A Product details

Features

¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative dot color Alternative face color Both CA or CC versions are available Cropped terminal pins 64.00 mm (2.60 inch) matrix height Dot size: Diameter 3.00 mm Pitch: 4.00 mm Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White dot, grey or black face RoHS compliant Package Dimensions Ø3.0(0.12 ) 4. 0× 15= 60.0.
