LM26 - Factory Preset Thermostat

Description

The LM26 is a precision, single digital-output, low-power thermostat comprised of an internal reference, DAC, temperature sensor and comparator.

Utilizing factory programming, it can be manufactured with different trip points as well as different digital output functionality.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM26 Factory-Preset Thermostat Texas Instruments
LM26001 1.5-A Switching Regulator Texas Instruments
LM26001-Q1 1.5-A Switching Regulator Texas Instruments
LM26001B 1.5A Switching Regulator Texas Instruments
LM26003 3-A Switching Regulator Texas Instruments

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
LM260 Voltage Comparators
LM26001 Switching Regulator
LM26001B 1.5A Switching Regulator
LM2601 Adapter Interface Circuit
LM2608 Programmable DC-DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

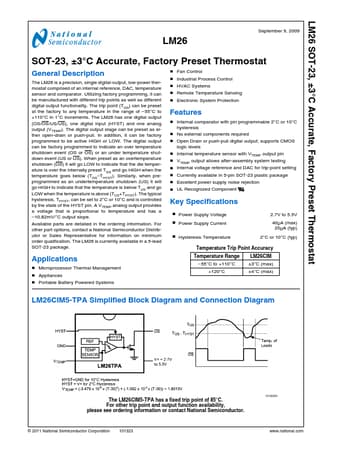

LM26 SOT-23, ±3°C Accurate, Factory Preset Thermostat LM26 September 9, 2009 SOT-23, ±3°C Accurate, Factory Preset Thermostat General Description The LM26 is a precision, single digital-output, low-power thermostat comprised of an internal reference, DAC, temperature sensor and comparator. Utilizing factory programming, it can be manufactured with different trip points as well as different digital output functionality. The trip point (TOS) can be preset at the factory to any temperature in the range of −55°C to +110°C in 1°C increments. The LM26 has one digital output (OS/OS/US/US), one digital input (HYST) and one analog output (VTEMP). The digital output stage can be preset as either open-drain or push-pull. In addition, it can be factory programmed to be active HIGH or LOW.
