PMPB215ENEA - single N-channel Trench MOSFET

Name: PMPB215ENEA
SKU: PMPB215ENEA-962117

NXP

📥 Download Datasheet

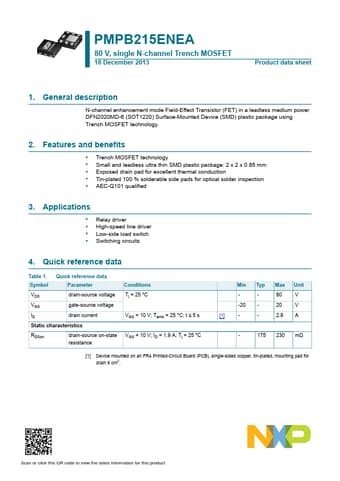

PMPB215ENEA Datasheet Preview — Preview of PMPB215ENEA PDF

Datasheet Details

Part number	PMPB215ENEA
Manufacturer	NXP
File Size	233.31 KB
Description	single N-channel Trench MOSFET
Datasheet	PMPB215ENEA-NXP.pdf

PMPB215ENEA Product details

Description

N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

Trench MOSFET technology.
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm.
Exposed drain pad for excellent thermal conduction.
Tin-plated 100 % solderable side pads for optical solder inspection.
AEC-Q101 qualified 3.
