PMPB20XPE - single P-channel Trench MOSFET

NXP

The PMPB20XPE by NXP is a single P-channel Trench MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

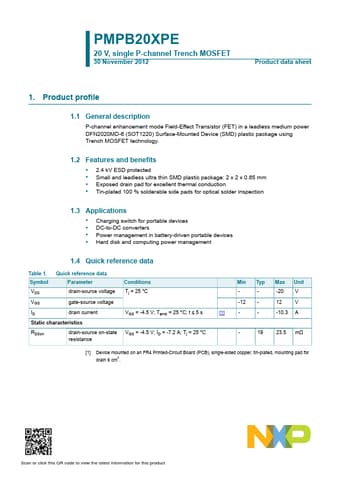

PMPB20XPE single P-channel Trench MOSFET by NXP - Datasheet Preview — Official preview page of the **PMPB20XPE** single P-channel Trench MOSFET datasheet (NXP).

Datasheet Details

Part number	PMPB20XPE
Manufacturer	NXP
File Size	249.42 KB
Description	single P-channel Trench MOSFET
Datasheet	PMPB20XPE-NXP.pdf
Additional preview pages of the PMPB20XPE datasheet.

PMPB20XPE Product details

Description

P-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

2.4 kV ESD protected.
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm.
Exposed drain pad for excellent thermal conduction.
Tin-plated 100 % solderable side pads for optical solder inspection 1.3.
