PMPB20UN - single N-channel Trench MOSFET

Name: PMPB20UN
SKU: PMPB20UN-832569

NXP Semiconductors

📥 Download Datasheet

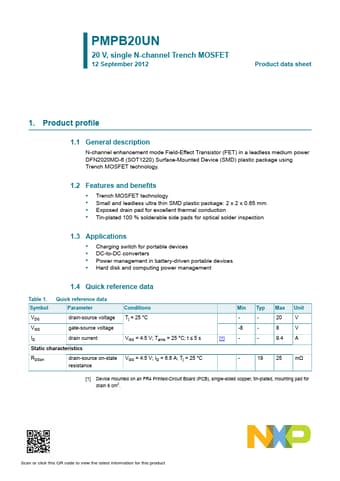

PMPB20UN Datasheet Preview — Preview of PMPB20UN PDF

Datasheet Details

Part number	PMPB20UN
Manufacturer	NXP Semiconductors
File Size	226.29 KB
Description	single N-channel Trench MOSFET
Datasheet	PMPB20UN-NXPSemiconductors.pdf

PMPB20UN Product details

Description

N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

Trench MOSFET technology.
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm.
Exposed drain pad for excellent thermal conduction.
Tin-plated 100 % solderable side pads for optical solder inspection 1.3.
