BAS21H Single high-voltage switching diode

BAS21H Description

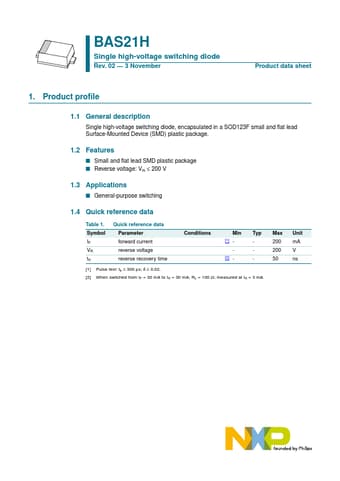

BAS21H Single high-voltage switching diode Rev.02 * 3 November Product data sheet 1.Product profile 1.1 General .
Single high-voltage switching diode, encapsulated in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.

BAS21H Applications

* I General-purpose switching 1.4 Quick reference data Table 1. Symbol IF VR trr Quick reference data Parameter forward current reverse voltage reverse recovery time Conditions Min [1] - [2] - Typ - [1] Pulse test: tp ≤ 300 µs; δ ≤ 0.02. [2] When switched from IF = 30 mA to IR = 30 mA; RL = 100
