BAS21-G Datasheet PDF - Vishay Small Signal Switching Diode Specs

BAS21-G - Small Signal Switching Diode

This page provides the datasheet information for the BAS21-G, a member of the BAS19-G Small Signal Switching Diode family.

Datasheet Summary

Features

Silicon epitaxial planar diode.
Fast switching diode in case SOT-23, especially suited for automatic insertion.
General purpose switching.

Datasheet Details

Part number	BAS21-G
Manufacturer	Vishay
File Size	90.26 KB
Description	Small Signal Switching Diode
Datasheet	BAS21-G Datasheet
Additional preview pages of the BAS21-G datasheet.

📁 Similar Datasheet

BAS21-03W - Silicon Switching Diode (Infineon Technologies AG)

BAS21-AU - SURFACE MOUNT SWITCHING DIODES (PAN JIT)

BAS21-Q - High-voltage switching diode (nexperia)

BAS21 - High voltage switching (double) diodes (CYStech Electronics)

BAS21 - SWITCHING DIODE (Sangdest Microelectronics)

BAS21 - 225mW SMD Switching Diode (Taiwan Semiconductor)

BAS21 - Switching Diode (GOOD-ARK)

BAS21 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)

BAS21 - SURFACE-MOUNT FAST SWITCHING DIODE (DIODES)

BAS21 - SURFACE MOUNT SWITCHING DIODE (DC COMPONENTS)

Full PDF Text Transcription

Click to expand full text

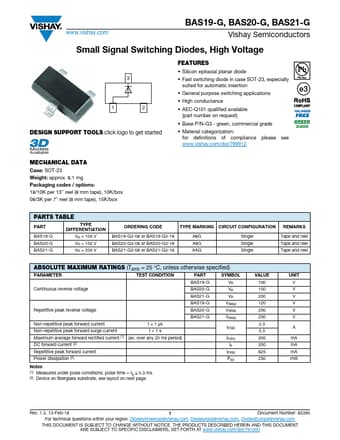

www.vishay.com BAS19-G, BAS20-G, BAS21-G Vishay Semiconductors Small Signal Switching Diodes, High Voltage 3 1 2 DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICAL DATA Case: SOT-23 Weight: approx. 8.1 mg Packaging codes / options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box FEATURES • Silicon epitaxial planar diode • Fast switching diode in case SOT-23, especially suited for automatic insertion • General purpose switching applications • High conductance • AEC-Q101 qualified available (part number on request) • Base P/N-G3 - green, commercial grade • Material categorization: for definitions of compliance please see www.vishay.
