BAS216 - High-speed switching diode

Datasheet Summary

Description

The BAS216 is a high-speed switching diode fabricated in planar technology, and encapsulated in the SOD110 very small rectangular ceramic SMD package.

bottom view Marking code: A6.

Fig.1 Simplified outline (SOD110) and symbol.

Features

  • Small ceramic SMD package.
  • High switching speed: max. 4 ns.
  • Continuous reverse voltage: max. 75 V.
  • Repetitive peak reverse voltage: max. 85 V.
  • Repetitive peak forward current: max. 500 mA.

📥 Download Datasheet

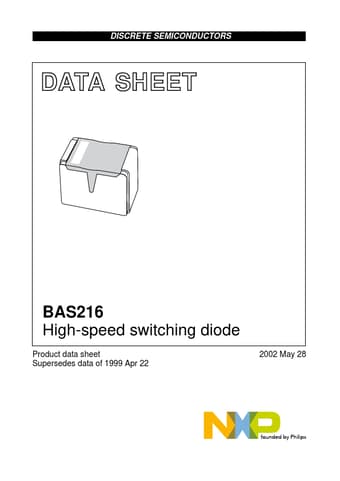

Datasheet preview – BAS216

Datasheet Details

Part number BAS216
Manufacturer NXP
File Size 70.99 KB
Description High-speed switching diode
Datasheet download datasheet BAS216 Datasheet
Additional preview pages of the BAS216 datasheet.
