BAS216WS - High-speed switching diode

Datasheet Summary

Description

Cathode Anode 12 WG Top View Marking Code: "WG" Simplified outline SOD-323 and symbol Absolute Maximum Ratings (T j = 25OC) Parameter Continuous Reverse Voltage Repetitive Peak Reverse Voltage Continuous Forward Current Repetitive Peak Forward Current Non-Repetitive Peak Forward Current Test -

Features

Small ceramic SMD package.
High switching speed: max. 4ns.
Continuous reverse voltage: max. 75V.
Repetitive peak reverse voltage: max. 85V.
Repetitive peak forward current: max. 500mA.

SEMTECH

📥 Download Datasheet

Datasheet Details

Part number	BAS216WS
Manufacturer	SEMTECH
File Size	402.32 KB
Description	High-speed switching diode
Datasheet	BAS216WS Datasheet

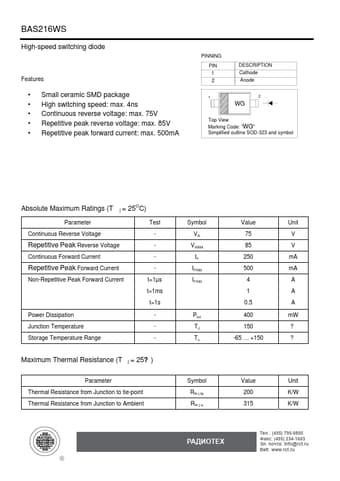

Additional preview pages of the BAS216WS datasheet.
