A5G35H120N Airfast RF Power GaN Transistor

NXP

A5G35H120N Description

A5G35H120N Airfast RF Power GaN Amplifier Rev.3 * 18 October 2023 Product data sheet 1 General .
This 18 W asymmetrical Doherty RF power GaN amplifier is designed for cellular base station applications requiring very wide instantaneous bandwidth.

A5G35H120N Features

* High terminal impedances for optimal broadband performance
* Improved linearized error vector magnitude with next generation signal
* Able to withstand extremely high output VSWR and broadband operating conditions
* Designed for low complexity linearization systems

A5G35H120N Applications

* requiring very wide instantaneous bandwidth capability covering the frequency range of 3300 to 3800 MHz. This part is characterized and performance is guaranteed for applications operating in the 3300 to 3800 MHz band. There is no guarantee of performance when this part is used in applications desig

📥 Download Datasheet

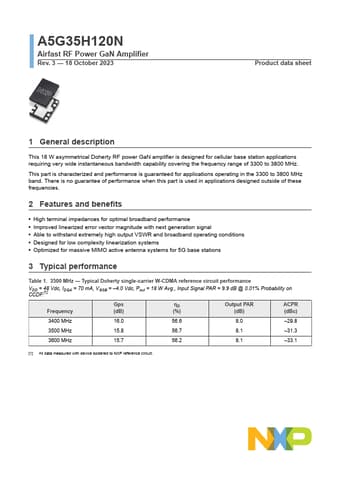

A5G35H120N Datasheet Preview — Preview of A5G35H120N PDF

Datasheet Details

Part number: A5G35H120N
Manufacturer: NXP ↗
File Size: 402.47 KB
Datasheet: A5G35H120N-NXP.pdf
Description: Airfast RF Power GaN Transistor
