PESD5V0X1UALD - Ultra low capacitance unidirectional ESD protection diode

Name: PESD5V0X1UALD
SKU: PESD5V0X1UALD-697510

NXP Semiconductors

📥 Download Datasheet

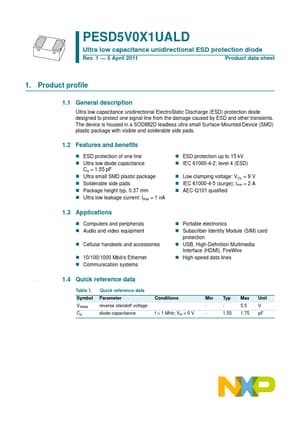

PESD5V0X1UALD Datasheet Preview — Preview of PESD5V0X1UALD PDF

Datasheet Details

Part number	PESD5V0X1UALD
Manufacturer	NXP Semiconductors
File Size	208.49 KB
Description	Ultra low capacitance unidirectional ESD protection diode
Datasheet	PESD5V0X1UALD_NXPSemiconductors.pdf

PESD5V0X1UALD Product details

Description

Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.

Features

ESD protection of one line.
Ultra low diode capacitance Cd = 1.55 pF.
Ultra small SMD plastic package.
Solderable side pads.
Package height typ. 0.37 mm.
Ultra low leakage current: IRM = 1 nA.
ESD protection up to 15 kV.
IEC 61000-4-2; level 4 (ESD).
Low clamping voltage: VCL = 9 V.
IEC 61000-4-5 (surge); IPP = 2 A.
AEC-Q101 qualified 1.3.
