PESD5V0X1BL, PESD5V0X1BA - Ultra low capacitance bidirectional ESD protection diodes

NXP Semiconductors

The PESD5V0X1BL by NXP Semiconductors is a Ultra low capacitance bidirectional ESD protection diodes. Below is the official datasheet preview.

📥 Download Datasheet

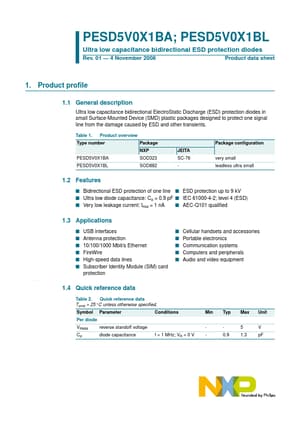

PESD5V0X1BL Ultra low capacitance bidirectional ESD protection diodes by NXP Semiconductors - Datasheet Preview — Official preview page of the **PESD5V0X1BL** Ultra low capacitance bidirectional ESD protection diodes datasheet (NXP Semiconductors).

Datasheet Details

Part number	PESD5V0X1BL, PESD5V0X1BA
Manufacturer	NXP Semiconductors
File Size	101.82 KB
Description	Ultra low capacitance bidirectional ESD protection diodes
Datasheet	PESD5V0X1BA_NXPSemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: PESD5V0X1BL, PESD5V0X1BA. Please refer to the document for exact specifications by model.
Additional preview pages of the PESD5V0X1BL datasheet.

PESD5V0X1BL Product details

Description

Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diodes in small Surface-Mounted Device (SMD) plastic packages designed to protect one signal line from the damage caused by ESD and other transients.

Features

I Bidirectional ESD protection of one line I ESD protection up to 9 kV I Ultra low diode capacitance: Cd = 0.9 pF I IEC 61000-4-2; level 4 (ESD) I Very low leakage current: IRM = 1 nA I AEC-Q101 qualiﬁed 1.3.
