PESD5V0X1BCAL - Extremely low capacitance bidirectional ESD protection diode

NXP

📥 Download Datasheet

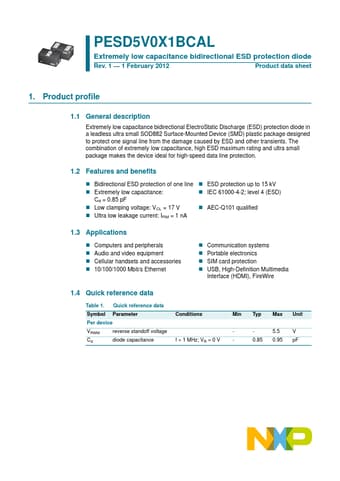

PESD5V0X1BCAL Datasheet Preview — Preview of PESD5V0X1BCAL PDF

Datasheet Details

Part number	PESD5V0X1BCAL
Manufacturer	NXP
File Size	188.90 KB
Description	Extremely low capacitance bidirectional ESD protection diode
Datasheet	PESD5V0X1BCAL-NXP.pdf

PESD5V0X1BCAL Product details

Description

Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a leadless ultra small SOD882 Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.

Features

Bidirectional ESD protection of one line.
ESD protection up to 15 kV.
Extremely low capacitance:.
IEC 61000-4-2; level 4 (ESD) Cd = 0.85 pF.
Low clamping voltage: VCL = 17 V.
Ultra low leakage current: IRM = 1 nA.
AEC-Q101 qualified 1.3.
