PESD5V0X1BCAL-Q - Extremely low capacitance bidirectional ESD protection diode

nexperia

📥 Download Datasheet

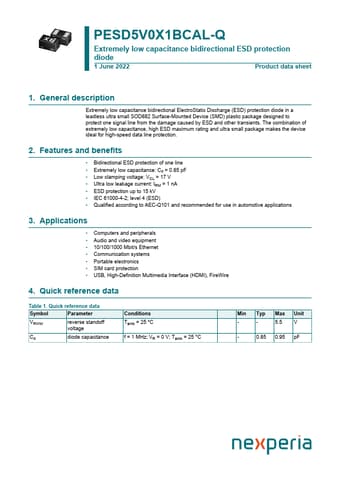

PESD5V0X1BCAL-Q Datasheet Preview — Preview of PESD5V0X1BCAL-Q PDF

Datasheet Details

Part number	PESD5V0X1BCAL-Q
Manufacturer	nexperia
File Size	210.38 KB
Description	Extremely low capacitance bidirectional ESD protection diode
Datasheet	PESD5V0X1BCAL-Q-nexperia.pdf

PESD5V0X1BCAL-Q Product details

Description

Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode in a leadless ultra small SOD882 Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.

Features

Bidirectional ESD protection of one line.
Extremely low capacitance: Cd = 0.85 pF.
Low clamping voltage: VCL = 17 V.
Ultra low leakage current: IRM = 1 nA.
ESD protection up to 15 kV.
IEC 61000-4-2; level 4 (ESD).
Qualified according to AEC-Q101 and recommended for use in automotive.
