NTE7128 - Integrated Circuit Positive Voltage Regulator with ON/OFF Feature / 12V / 1A

Name: NTE7128
SKU: NTE7128-467803

NTE Electronics

📥 Download Datasheet

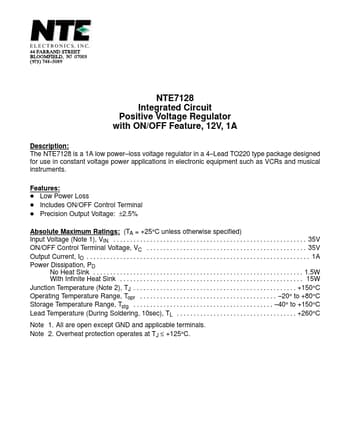

NTE7128 Datasheet Preview — Preview of NTE7128 PDF

Datasheet Details

Part number	NTE7128
Manufacturer	NTE Electronics
File Size	21.78 KB
Description	Integrated Circuit Positive Voltage Regulator with ON/OFF Feature / 12V / 1A
Datasheet	NTE7128_NTEElectronics.pdf

NTE7128 Product details

Description

The NTE7128 is a 1A low power loss voltage regulator in a 4 Lead TO220 type package designed for use in constant voltage power applications in electronic equipment such as VCRs and musical instruments.

Features

D Low Power Loss D Includes ON/OFF Control Terminal D Precision Output Voltage: ±2.5% Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Input Voltage (Note 1), VIN.
. . . 35V ON/OFF Control Terminal Voltage, VC.
. . . 35V Output Current, IO.
