NTE7124 - Integrated Circuit Positive 5V Regulator w/Reset Function

Name: NTE7124
SKU: NTE7124-467800

NTE Electronics

📥 Download Datasheet

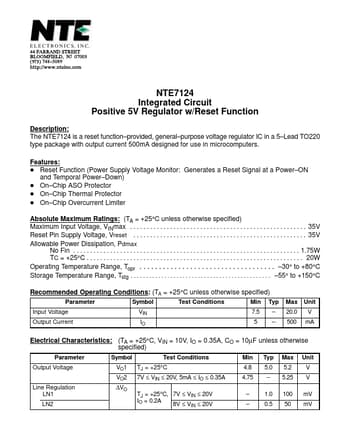

NTE7124 Datasheet Preview — Preview of NTE7124 PDF

Datasheet Details

Part number	NTE7124
Manufacturer	NTE Electronics
File Size	32.37 KB
Description	Integrated Circuit Positive 5V Regulator w/Reset Function
Datasheet	NTE7124_NTEElectronics.pdf

NTE7124 Product details

Description

The NTE7124 is a reset function provided, general purpose voltage regulator IC in a 5 Lead TO220 type package with output current 500mA designed for use in microcomputers.

Features

D Reset Function (Power Supply Voltage Monitor: Generates a Reset Signal at a Power.
ON and Temporal Power.
Down) D On.
Chip ASO Protector D On.
Chip Thermal Protector D On.
Chip Overcurrent Limiter Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum Input Voltage, VINmax.
. . . 35V Reset Pin Supply Voltage, Vreset.
