NTE7178 - Module-3 Channel Convergence Correction Circuit

Name: NTE7178
SKU: NTE7178-956006

NTE

📥 Download Datasheet

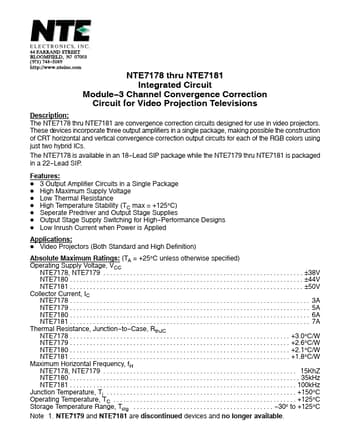

NTE7178 Datasheet Preview — Preview of NTE7178 PDF

Datasheet Details

Part number	NTE7178
Manufacturer	NTE
File Size	79.12 KB
Description	Module-3 Channel Convergence Correction Circuit
Datasheet	NTE7178-NTE.pdf

NTE7178 Product details

Description

The NTE7178 thru NTE7181 are convergence correction circuits designed for use in video projectors. Lead SIP package while the NTE7179 thru NTE7181 is packaged in a 22 Lead SIP.

Features

D 3 Output Amplifier Circuits in a Single Package D High Maximum Supply Voltage D Low Thermal Resistance D High Temperature Stability (TC max = +125°C) D Seperate Predriver and Output Stage Supplies D Output Stage Supply Switching for High.
Performance Designs D Low Inrush Current when Power is Applied.
