NTE71 - Silicon NPN Transistor High Current Amp / Fast Switch

Name: NTE71
SKU: NTE71-467783

NTE Electronics

📥 Download Datasheet

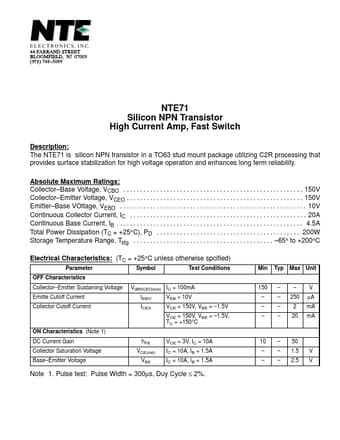

NTE71 Datasheet Preview — Preview of NTE71 PDF

Datasheet Details

Part number	NTE71
Manufacturer	NTE Electronics
File Size	22.94 KB
Description	Silicon NPN Transistor High Current Amp / Fast Switch
Datasheet	NTE71_NTEElectronics.pdf

NTE71 Product details

Description

The NTE71 is silicon NPN transistor in a TO63 stud mount package utilizing C2R processing that provides surface stabilization for high voltage operation and enhances long term reliability. Base Voltage, VCBO . Emitter Voltage, VCEO .
