NTE7126 - Integrated Circuit Switching Regulator

NTE Electronics

📥 Download Datasheet

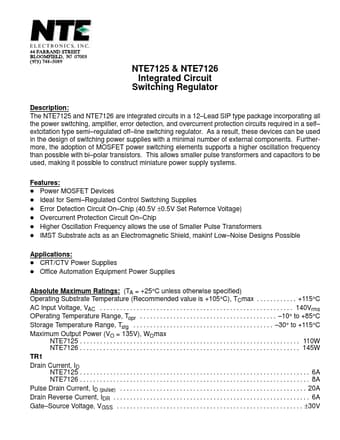

NTE7126 Datasheet Preview — Preview of NTE7126 PDF

Datasheet Details

Part number	NTE7126
Manufacturer	NTE Electronics
File Size	24.35 KB
Description	Integrated Circuit Switching Regulator
Datasheet	NTE7126_NTEElectronics.pdf

NTE7126 Product details

Description

The NTE7125 and NTE7126 are integrated circuits in a 12 Lead SIP type package incorporating all the power switching, amplifier, error detection, and overcurrent protection circuits required in a self extcitation type semi regulated off line switching regulator.

Features

D Power MOSFET Devices D Ideal for Semi.
Regulated Control Switching Supplies D Error Detection Circuit On.
Chip (40.5V ±0.5V Set Refernce Voltage) D Overcurrent Protection Circuit On.
Chip D Higher Oscillation Frequency allows the use of Smaller Pulse Transformers D IMST Substrate acts as an Electromagnetic Shield, makinf Low.
Noise Designs Possible.
