GT10PI120B3H - IGBT

The GT10PI120B3H by NJSME is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

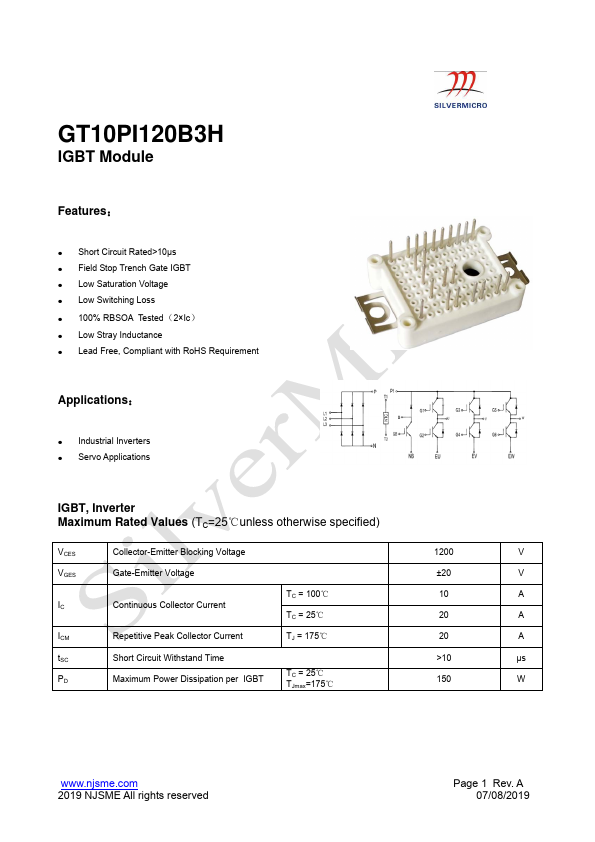

Official preview page of the GT10PI120B3H IGBT datasheet (NJSME).

Datasheet Details

Part number GT10PI120B3H
Manufacturer NJSME
File Size 712.39 KB
Description IGBT
Datasheet download datasheet GT10PI120B3H-SILVERMICRO.pdf

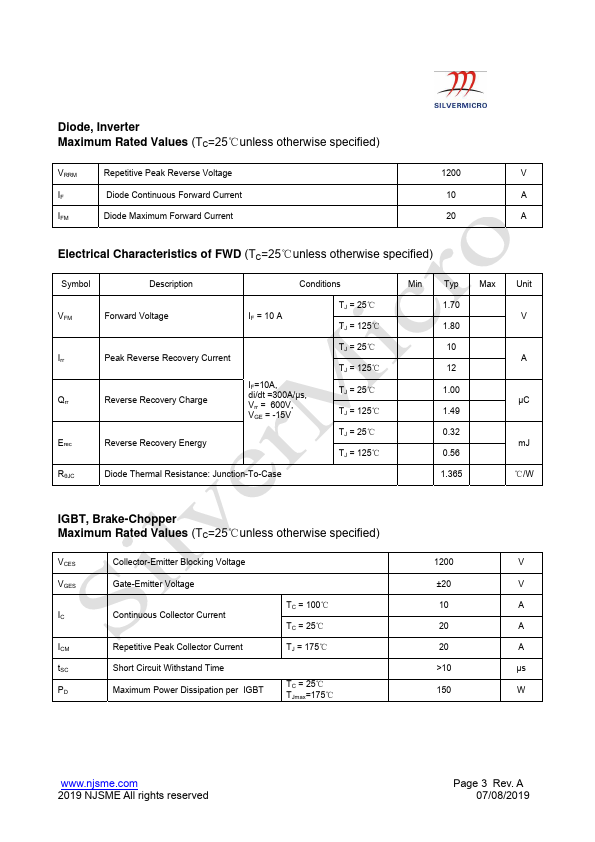

Additional preview pages of the GT10PI120B3H datasheet.

GT10PI120B3H Product details

Description

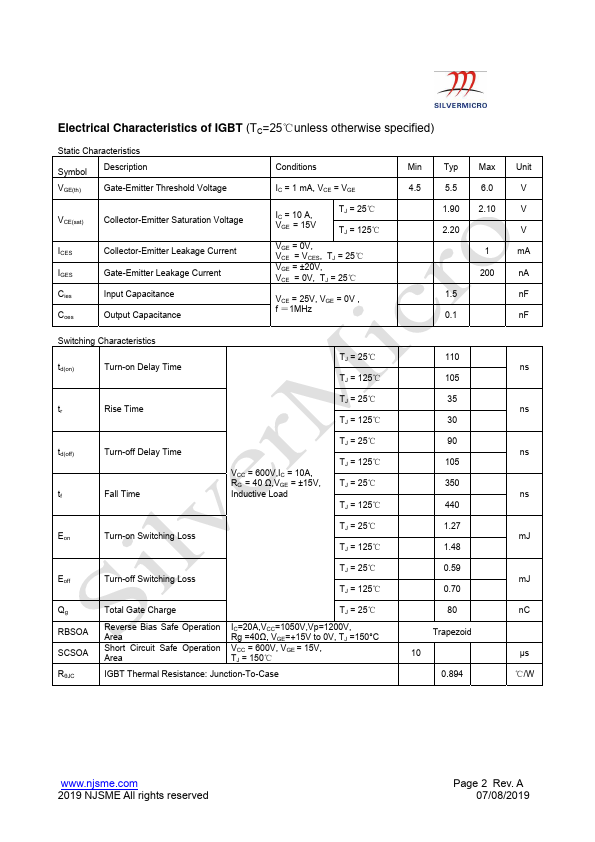

VGE(th) Gate-Emitter Threshold Voltage Conditions IC = 1 mA, VCE = VGE Min Typ Max Unit 4.5 5.5 6.0 V VCE(sat) Collector-Emitter Saturation Voltage ICES Collector-Emitter Leakage Current IGES Gate-Emitter Leakage Current Cies Input Capacitance Coes Output Capacitance IC = 10 A, VGE = 15V TJ = 25℃ TJ = 125℃ VGE = 0V, VCE = VCES, TJ = 25℃ VGE = ±20V, VCE = 0V, TJ = 25℃ VCE = 25V, VGE = 0V , f ＝1MHz 1.90 2.10 V 2.20 V 1 mA 200 nA 1.5 nF 0.1 nF Switching Characteris

Features
