UPD161622 - 396 OUTPUT TFT-LCD SOURCE DRIVER

NEC

📥 Download Datasheet

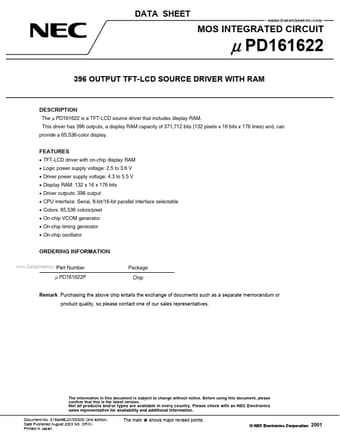

UPD161622 Datasheet Preview — Preview of UPD161622 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UPD161622
Manufacturer	NEC
File Size	1.03 MB
Description	396 OUTPUT TFT-LCD SOURCE DRIVER
Datasheet	UPD161622_NEC.pdf

UPD161622 Product details

Description

The µ PD161622 is a TFT-LCD source driver that includes display RAM.

Features

TFT-LCD driver with on-chip display RAM.
Logic power supply voltage: 2.5 to 3.6 V.
Driver power supply voltage: 4.3 to 5.5 V.
Display RAM: 132 x 16 x 176 bits.
Driver outputs: 396 output.
CPU interface: Serial, 8-bit/16-bit parallel interface selectable.
Colors: 65,536 colors/pixel.
On-chip VCOM generator.
On-chip timing generator.
On-chip oscillator.
