UPD161602A - 360/396-OUTPUT TFT-LCD SOURCE DRIVER

NEC

📥 Download Datasheet

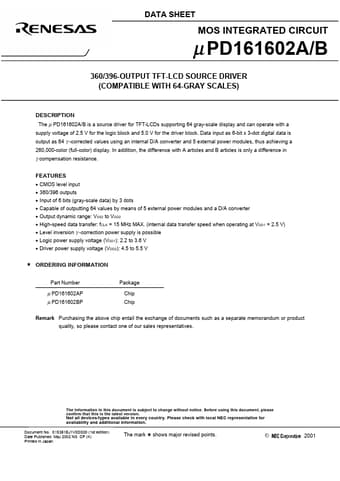

UPD161602A Datasheet Preview — Preview of UPD161602A PDF

Datasheet Details

Part number	UPD161602A
Manufacturer	NEC
File Size	428.72 KB
Description	360/396-OUTPUT TFT-LCD SOURCE DRIVER
Datasheet	UPD161602A_NEC.pdf

UPD161602A Product details

Description

The µ PD161602A/B is a source driver for TFT-LCDs supporting 64 gray-scale display and can operate with a supply voltage of 2.5 V for the logic block and 5.0 V for the driver block.Data input as 6-bit x 3-dot digital data is output as 64 γ -corrected values using an internal D/A converter and 5 external power modules, thus achieving a 260,000-color (full-color) display.In addition, the difference with A articles and B articles is only a difference in γ compensation resistance.

Features

CMOS level input.
360/396 outputs.
Input of 6 bits (gray-scale data) by 3 dots.
Capable of outputting 64 values by means of 5 external power modules and a D/A converter.
Output dynamic range: VSS2 to VDD2.
High-speed data transfer: fCLK = 15 MHz MAX. (internal data transfer speed when operating at VDD1 = 2.5 V).
Level inversion γ -correction power supply is possible.
Logic power supply voltage (VDD1): 2.2 to 3.6 V.
