UPD161620 - 432 OUTPUT TFT-LCD SOURCE DRIVER

NEC

📥 Download Datasheet

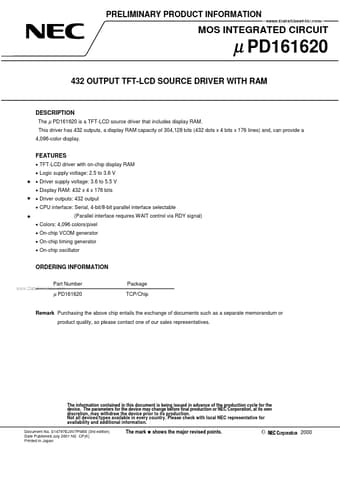

UPD161620 Datasheet Preview — Preview of UPD161620 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UPD161620
Manufacturer	NEC
File Size	546.53 KB
Description	432 OUTPUT TFT-LCD SOURCE DRIVER
Datasheet	UPD161620_NEC.pdf

UPD161620 Product details

Description

The µ PD161620 is a TFT-LCD source driver that includes display RAM.

Features

TFT-LCD driver with on-chip display RAM.
Logic supply voltage: 2.5 to 3.6 V 5.
Driver supply voltage: 3.6 to 5.5 V.
Display RAM: 432 x 4 x 176 bits 5.
Driver outputs: 432 output.
CPU interface: Serial, 4-bit/8-bit parallel interface selectable 5 (Parallel interface requires WAIT control via RDY signal).
Colors: 4,096 colors/pixel.
On-chip VCOM generator.
On-chip timing generator.
On-chip oscillator ORDERI.
