2SK2511 - SWITCHING N-CHANNEL POWER MOS FET

NEC

📥 Download Datasheet

2SK2511 Datasheet Preview — Preview of 2SK2511 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK2511
Manufacturer	NEC
File Size	116.24 KB
Description	SWITCHING N-CHANNEL POWER MOS FET
Datasheet	2SK2511_NEC.pdf

2SK2511 Product details

Description

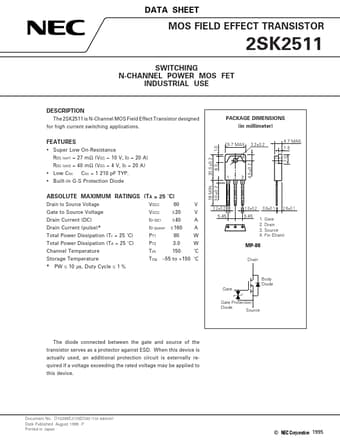

The 2SK2511 is N-Channel MOS Field Effect Transistor designed for high current switching applications.

Features

Super Low On-Resistance RDS (on)1 = 27 mΩ (VGS = 10 V, ID = 20 A) RDS (on)2 = 40 mΩ (VGS = 4 V, ID = 20 A) 1.0 15.7 MAX. 4 3.2±0.2 20.0±0.2 6.0.
Low Ciss Ciss = 1 210 pF TYP.
Built-in G-S Protection Diode.
