2SK2510 - SWITCHING N-CHANNEL POWER MOS FET

NEC

📥 Download Datasheet

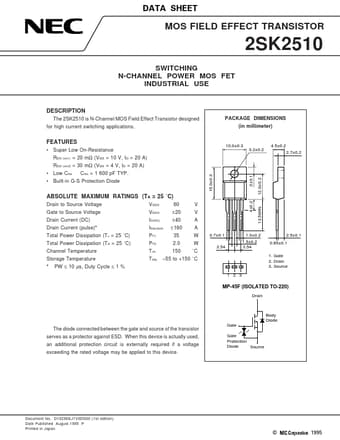

2SK2510 Datasheet Preview — Preview of 2SK2510 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK2510
Manufacturer	NEC
File Size	81.98 KB
Description	SWITCHING N-CHANNEL POWER MOS FET
Datasheet	2SK2510_NEC.pdf

2SK2510 Product details

Description

The 2SK2510 is N-Channel MOS Field Effect Transistor designed for high current switching applications.

Features

Super Low On-Resistance RDS (on)1 = 20 mΩ (VGS = 10 V, ID = 20 A) RDS (on)2 = 30 mΩ (VGS = 4 V, ID = 20 A) 15.0±0.3 10.0±0.3 3.2±0.2 4.5±0.2 2.7±0.2 3±0.1 4±0.2.
Low Ciss Ciss = 1 600 pF TYP.
Built-in G-S Protection Diode.
