2SK2512 - SWITCHING N-CHANNEL POWER MOS FET

Description

The 2SK2512 is N-Channel MOS Field Effect Transistor designed for high current switching applications.

Features

  • Low On-Resistance RDS (on)1 = 15 mΩ (VGS = 10 V, ID = 23 A) RDS (on)2 = 23 mΩ (VGS = 4 V, ID = 23 A) 15.0±0.3 10.0±0.3 3.2±0.2 4.5±0.2 2.7±0.2 3±0.1 4±0.2.
  • Low Ciss Ciss = 2 100 pF TYP.
  • Built-in G-S Protection Diode.

📥 Download Datasheet

Datasheet Details

Part number 2SK2512
Manufacturer NEC
File Size 82.27 KB
Description SWITCHING N-CHANNEL POWER MOS FET
Datasheet download datasheet 2SK2512 Datasheet

📁 Similar Datasheet

  • 2SK2516-01L - N-channel MOS-FET (Fuji Electric)
  • 2SK2516-01S - N-channel MOS-FET (Fuji Electric)
  • 2SK2517-01L - N-channel MOS-FET (Fuji Electric)
  • 2SK2517-01S - N-channel MOS-FET (Fuji Electric)
  • 2SK2518-01MR - N-channel MOS-FET (Fuji Electric)
  • 2SK2519-01 - N-channel MOS-FET (Fuji Electric)
  • 2SK2503 - Small switching Transistors (Rohm)
  • 2SK2503 - Silicon N-Channel MOSFET (Guangdong Kexin Industrial)
  • 2SK2503 - Transistor (TY Semiconductor)
  • 2SK2504 - Small switching Transistors (Rohm)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

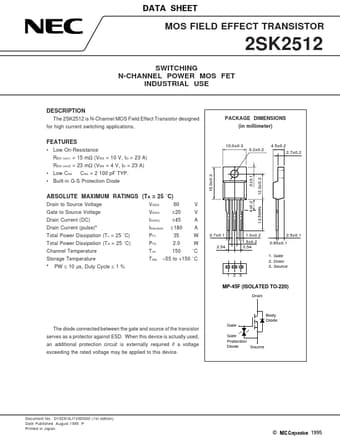

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK2512 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE DESCRIPTION The 2SK2512 is N-Channel MOS Field Effect Transistor designed for high current switching applications. PACKAGE DIMENSIONS (in millimeter) FEATURES • Low On-Resistance RDS (on)1 = 15 mΩ (VGS = 10 V, ID = 23 A) RDS (on)2 = 23 mΩ (VGS = 4 V, ID = 23 A) 15.0±0.3 10.0±0.3 3.2±0.2 4.5±0.2 2.7±0.2 3±0.1 4±0.2 • Low Ciss Ciss = 2 100 pF TYP.
