NCE80H14 N-Channel Enhancement Mode Power MOSFET

NCE80H14 Description

http://www.ncepower.com Pb Free Product NCE80H14 NCE N-Channel Enhancement Mode Power MOSFET .
The NCE80H14 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

NCE80H14 Features

* VDS =80V,ID =140A RDS(ON) < 6.5mΩ @ VGS=10V (Typ:5.9mΩ)
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat dissipation
* Special process technol

📥 Download Datasheet

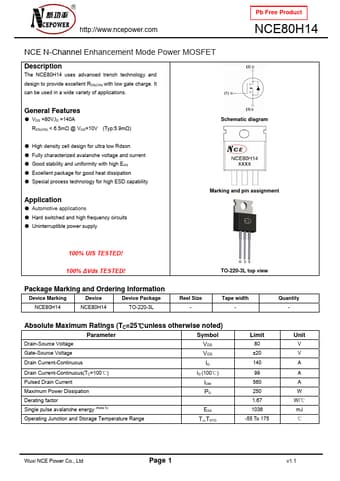

Preview of NCE80H14 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCE80H14
Manufacturer
NCE Power Semiconductor
File Size
324.47 KB
Datasheet
NCE80H14-NCEPowerSemiconductor.pdf
Description
N-Channel Enhancement Mode Power MOSFET
