MTV130 - On-Screen Display

Myson

📥 Download Datasheet

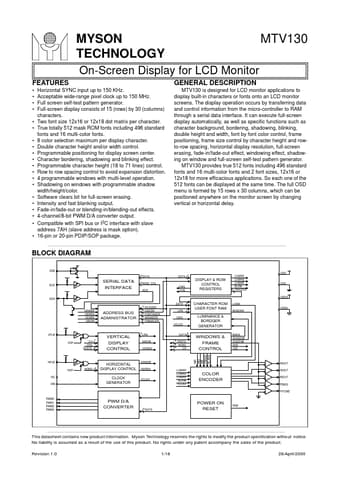

MTV130 Datasheet Preview — Preview of MTV130 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MTV130
Manufacturer	Myson
File Size	373.15 KB
Description	On-Screen Display
Datasheet	MTV130_Myson.pdf

MTV130 Product details

Description

MTV130 is designed for LCD monitor applications to display built-in characters or fonts onto an LCD monitor screens.

Features

Horizontal SYNC input up to 150 KHz. Acceptable wide-range pixel clock up to 150 MHz. Full screen self-test pattern generator. Full-screen display consists of 15 (rows) by 30 (columns) characters. Two font size 12x16 or 12x18 dot matrix per character. True totally 512 mask ROM fonts including 496 st.
