MTV121 - Super On-Screen-Display

Myson

📥 Download Datasheet

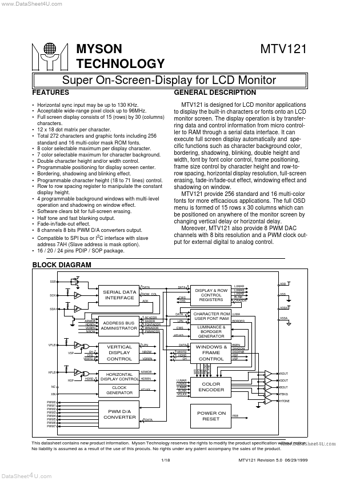

MTV121 Datasheet Preview — Preview of MTV121 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MTV121
Manufacturer	Myson
File Size	315.37 KB
Description	Super On-Screen-Display
Datasheet	MTV121_Myson.pdf

MTV121 Product details

Description

MTV121 is designed for LCD monitor applications to display the built-in characters or fonts onto an LCD monitor screen.

Features

Horizontal sync input may be up to 130 KHz.
Acceptable wide-range pixel clock up to 96MHz.
Full screen display consists of 15 (rows) by 30 (columns) characters.
12 x 18 dot matrix per character.
Total 272 characters and graphic fonts including 256 standard and 16 multi-color mask ROM fonts.
8 color selectable maximum per display character.
7 color selectable maximum for character background.
Double character height a.
