TIP47 High Voltage Power Trasnsitors

TIP47 Description

TIP47, 50 High Voltage Power Transistors High Voltage NPN Silicon Power Transistors are designed for line operated audio output amplifier, and switch.

TIP47 Features

* Collector - emitter sustaining voltage -voltage- 250 - 400 V (Minimum)
* 1 A Rated collector current
* fT = 10 MHz (Minimum) at IC = 200 mA TO-220 Pin 1. Base 2. Collector 3. Emitter 4. Collector (Case) Maximum Ratings Dimensions A B C D E F G H I J K L M O Minimum Maxi

📥 Download Datasheet

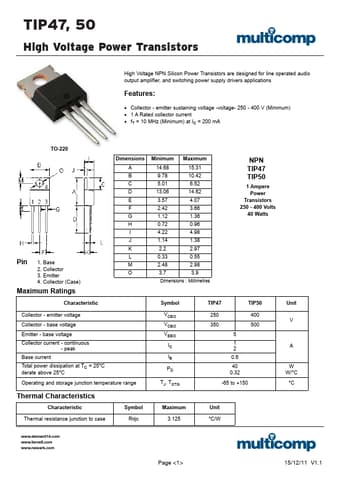

Preview of TIP47 PDF
