TIP47G, TIP48 High Voltage NPN Silicon Power Transistors

TIP47G Description

High Voltage NPN Silicon Power Transistors TIP47G, TIP48G, TIP50G This series is designed for line operated audio output amplifier, SWITCHMODE power .

TIP47G Features

* Popular TO
* 220 Plastic Package
* Complementary to the MJE5730 and MJE5731 Series
* These Devices are Pb
* Free and are RoHS Compliant
* MAXIMUM RATINGS Symbol Rating TIP47 TIP48 TIP50 Unit VCEO Collector
* Emitter Voltage 250 300 400 Vdc VCB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TIP47G, TIP48. Please refer to the document for exact specifications by model.

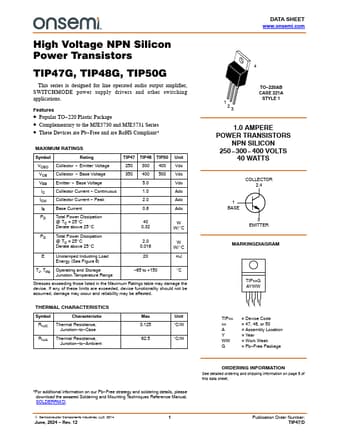

datasheet Preview Page 2 datasheet Preview Page 3
