TIP41AG - Complementary Silicon Plastic Power Transistors

This page provides the datasheet information for the TIP41AG, a member of the TIP41G Complementary Silicon Plastic Power Transistors family.

Datasheet Summary

Features

  • Epoxy Meets UL 94 V.
  • 0 @ 0.125 in.
  • These Devices are Pb.
  • Free and are RoHS Compliant.

📥 Download Datasheet

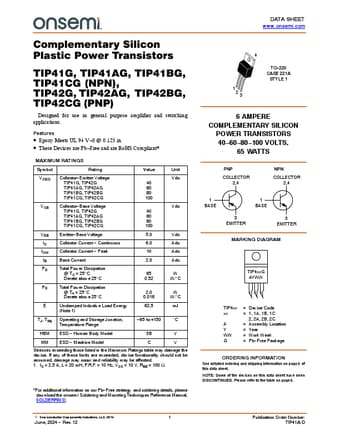

Datasheet preview – TIP41AG

Datasheet Details

Part number TIP41AG
Manufacturer ON Semiconductor
File Size 282.03 KB
Description Complementary Silicon Plastic Power Transistors
Datasheet download datasheet TIP41AG Datasheet
Additional preview pages of the TIP41AG datasheet.

📁 Similar Datasheet

  • TIP41A - NPN Silicon Epitaxial Power Transistor (Thinki Semiconductor)
  • TIP41A - NPN PLASTIC POWER TRANSISTORS (CDIL)
  • TIP41A - Power Transistor (Sanyo)
  • TIP41A - NPN Transistor (INCHANGE)
  • TIP41A - NPN Silicon Power Transistors (MCC)
  • TIP41A - POWER TRANSISTORS (Motorola)
  • TIP41A - COMPLEMENTARY SILICON POWER TRANSISTORS (STMicroelectronics)
  • TIP41A - NPN Epitaxial Silicon Transistor (Fairchild Semiconductor)
  • TIP41A - Silicon NPN Transistors (NTE)
  • TIP41A - Silicon Power Transistors (Comset Semiconductors)
Other Datasheets by ON Semiconductor
  • TIP41A - NPN Transistor
  • TIP41 - Complementary Silicon Plastic Power Transistors
  • TIP41B - NPN Transistor
  • TIP41BG - Complementary Silicon Plastic Power Transistors
  • TIP41C - NPN Transistor
  • TIP41CG - Complementary Silicon Plastic Power Transistors
  • TIP41G - Complementary Silicon Plastic Power Transistors
  • TIP42 - PNP Epitaxial Silicon Transistor

Full PDF Text Transcription

Click to expand full text
Complementary Silicon Plastic Power Transistors TIP41G, TIP41AG, TIP41BG, TIP41CG (NPN), TIP42G, TIP42AG, TIP42BG, TIP42CG (PNP) Designed for use in general purpose amplifier and switching applications. Features • Epoxy Meets UL 94 V−0 @ 0.125 in • These Devices are Pb−Free and are RoHS Compliant* MAXIMUM RATINGS Symbol Rating Value Unit VCEO Collector−Emitter Voltage TIP41G, TIP42G TIP41AG, TIP42AG TIP41BG, TIP42BG TIP41CG, TIP42CG Vdc 40 60 80 100 VCB Collector−Base Voltage TIP41G, TIP42G TIP41AG, TIP42AG TIP41BG, TIP42BG TIP41CG, TIP42CG Vdc 40 60 80 100 VEB Emitter−Base Voltage IC Collector Current − Continuous ICM Collector Current − Peak IB Base Current PD Total Power Dissipation @ TC = 25°C Derate above 25°C 5.0 Vdc 6.0 Adc 10 Adc 2.0 Adc 65 W 0.
