TIP42C PNP Power Transistor

TIP42C Description

PNP Power Transistor Complementary Silicon Plastic Power Transistors .

TIP42C Applications

* Collector-emitter sustaining voltage-VCEO (sus) = 100V (minimum).
* Collector-emitter saturation voltage-VCE (sat) = 1.5V (maximum) at IC = 6.0A.
* Current gain-bandwidth product fT = 3.0 MHz (minimum) at IC = 500mA. Pin 1. Base. 2. Collector. 3. Emitter. 4. Collector (Ca

📥 Download Datasheet

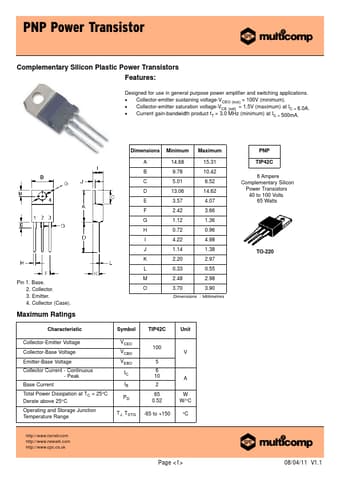

Preview of TIP42C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TIP42C
Manufacturer
Multicomp
File Size
272.31 KB
Datasheet
TIP42C-Multicomp.pdf
Description
PNP Power Transistor
