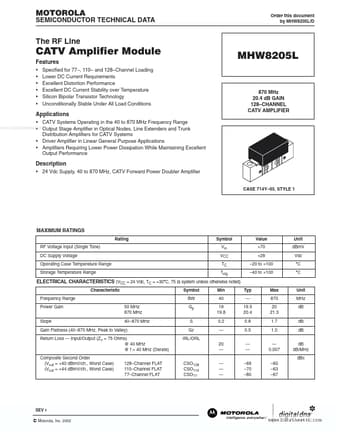

Official preview page of the MHW8205L The RF Line CATV Amplifier Module datasheet (Motorola).

Datasheet Details

Part number MHW8205L
Manufacturer Motorola
File Size 136.46 KB
Description The RF Line CATV Amplifier Module
Datasheet download datasheet MHW8205L_Motorola.pdf
Additional preview pages of the MHW8205L datasheet.

MHW8205L Product details

Description

24 Vdc Supply, 40 to 870 MHz, CATV Forward Power Doubler Amplifier CASE 714Y 03, STYLE 1 MAXIMUM RATINGS Rating RF Voltage Input (Single Tone) DC Supply Voltage Operating Case Temperature Range Storage Temperature Range Symbol Vin VCC TC Tstg Value +70 +28 20 to +100 40 to +100 Unit dBmV Vdc °C °C ELECTRICAL CHARACTERISTICS (VCC = 24 Vdc, TC = +30°C, 75 Ω system unless otherwise noted) Characteristic Frequency Range Power Gain Slope 50 MHz 870 MHz 40
