MHW8242AN - CATV Amplifier Module

Datasheet Summary

Description

24 Vdc Supply, 40 to 860 MHz, CATV Forward Amplifier Module

Replaced MHW8242A.

There are no form, fit or function changes with this part replacement.

RoHS Compliant Table 1.

Features

Specified for 77 - and 128 - Channel Loading.
Excellent Distortion Performance.
Silicon Bipolar Transistor Technology.
Unconditionally Stable Under All Load Conditions.

Datasheet Details

Part number	MHW8242AN
Manufacturer	Freescale Semiconductor
File Size	71.66 KB
Description	CATV Amplifier Module
Datasheet	MHW8242AN Datasheet
Additional preview pages of the MHW8242AN datasheet.

📁 Similar Datasheet

MHW8242A - 24 dB GAIN 860 MHz 128-CHANNEL CATV AMPLIFIER (Motorola)

MHW8242 - 24 dB GAIN 860 MHz 128-CHANNEL CATV AMPLIFIER (Motorola)

MHW8247A - Gallium Arsenide CATV Amplifier Module (Motorola)

MHW820-x - UHF FM Module (Motorola)

MHW8202B - CATV AMPLIFIER MODULE (Motorola)

MHW8205 - 20.2 dB GAIN 860 MHz 128-CHANNEL CATV AMPLIFIER (Motorola)

MHW8205L - The RF Line CATV Amplifier Module (Motorola)

MHW8205R - High Output Mirror Power Doubler (Motorola)

MHW8207A - Gallium Arsenide CATV Amplifier Module (Motorola)

MHW8222 - 22 dB GAIN 750/860 MHz 110/128 CHANNEL CATV AMPLIFIERS (Motorola)

Full PDF Text Transcription

Click to expand full text

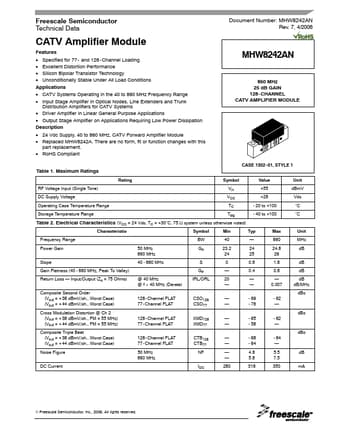

Freescale Semiconductor Technical Data Document Number: MHW8242AN Rev. 7, 4/2006 CATV Amplifier Module Features • Specified for 77 - and 128 - Channel Loading • Excellent Distortion Performance • Silicon Bipolar Transistor Technology • Unconditionally Stable Under All Load Conditions Applications • CATV Systems Operating in the 40 to 860 MHz Frequency Range • Input Stage Amplifier in Optical Nodes, Line Extenders and Trunk Distribution Amplifiers for CATV Systems • Driver Amplifier in Linear General Purpose Applications • Output Stage Amplifier on Applications Requiring Low Power Dissipation Description • 24 Vdc Supply, 40 to 860 MHz, CATV Forward Amplifier Module • Replaced MHW8242A. There are no form, fit or function changes with this part replacement. • RoHS Compliant Table 1.
