MHW8222B - CATV Amplifier Module

The MHW8222B by Freescale Semiconductor is a CATV Amplifier Module. Below is the official datasheet preview.

📥 Download Datasheet

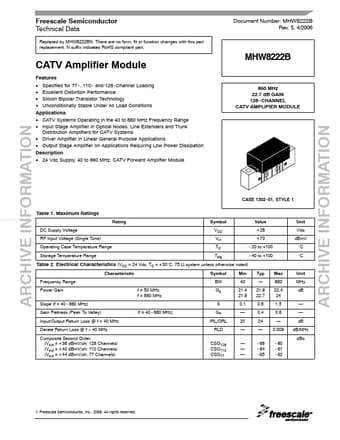

Official preview page of the MHW8222B CATV Amplifier Module datasheet (Freescale Semiconductor).

Datasheet Details

Part number MHW8222B
Manufacturer Freescale Semiconductor
File Size 95.45 KB
Description CATV Amplifier Module
Datasheet download datasheet MHW8222B_FreescaleSemiconductor.pdf
Additional preview pages of the MHW8222B datasheet.

MHW8222B Product details

Description

24 Vdc Supply, 40 to 860 MHz, CATV Forward Amplifier Module MHW8222B 860 MHz 22.7 dB GAIN 128 - CHANNEL CATV AMPLIFIER MODULE ARCHIVE INFORMATION CASE 1302 - 01, STYLE 1 Table 1. Maximum Ratings Rating DC Supply Voltage RF Input Voltage (Single Tone) Operating Case Temperature Range Storage Temperature Range Symbol VCC Vin TC Tstg Value + 28 + 70 - 20 to +100 - 40 to +100 Unit Vdc dBmV °C °C www.DataSheet4U.com Table 2. Electrical Characteristics (VCC = 24 Vdc, TC = + 30°C, 75 Ω
