MHW8202B - CATV AMPLIFIER MODULE

The MHW8202B by Motorola is a CATV AMPLIFIER MODULE. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the MHW8202B CATV AMPLIFIER MODULE datasheet (Motorola).

Datasheet Details

Part number MHW8202B
Manufacturer Motorola
File Size 104.89 KB
Description CATV AMPLIFIER MODULE
Datasheet download datasheet MHW8202B_MotorolaInc.pdf
Additional preview pages of the MHW8202B datasheet.

MHW8202B Product details

Description

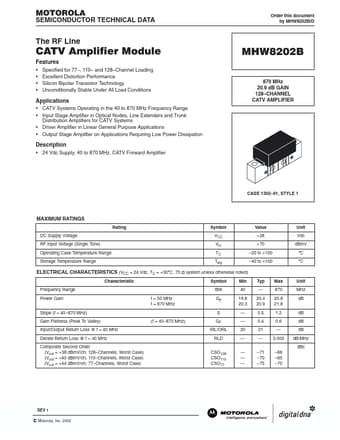

24 Vdc Supply, 40 to 870 MHz, CATV Forward Amplifier CASE 1302 01, STYLE 1 MAXIMUM RATINGS Rating DC Supply Voltage RF Input Voltage (Single Tone) Operating Case Temperature Range Storage Temperature Range Symbol VCC Vin TC Tstg Value +28 +70 20 to +100 40 to +100 Unit Vdc dBmV °C °C ELECTRICAL CHARACTERISTICS (VCC = 24 Vdc, TC = +30°C, 75 Ω system unless otherwise noted) Characteristic Frequency Range Power Gain Slope (f = 40 870 MHz) Gain Flatness
