M62444FP - 4CH ELECTRIC VOLUME

Product Overview

Mitsubishi

Part number	M62444FP
Manufacturer	Mitsubishi
File Size	110.52 KB
Description	4CH ELECTRIC VOLUME
Datasheet	M62444FP Datasheet

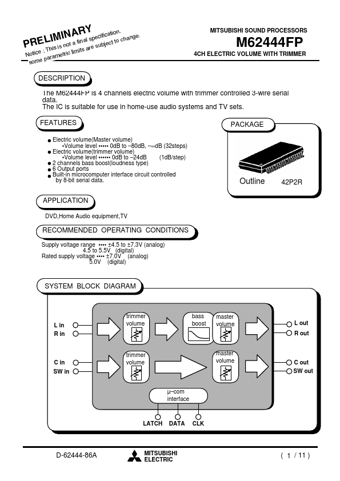

Additional preview pages of the M62444FP datasheet.

The M62444FP is 4 channels electric volume with trimmer controlled 3-wire serial data.

Electric volume(Master volume).
Volume level.
0dB to.
80dB,.
∞dB (32steps) Electric volume(trimmer volume).
Volume level.
0dB to.
24dB (1dB/step) 2 channels bass boost(loudness type) 6 Output ports Built-in microcomputer interface circuit controlled by 8-bit serial data.
