M62440 - ELECTRIC VOLUME CONTROL

Description

The M62440FP is an IC developed for car audio, it has a built-in 4ch input selector, master volume, loudness, tone control and fader volume blocks.

All of these blocks are controlled via serial data.Thank to the used zero crossing detector, very low click noise are obtained.

Features

  • Built-in zero cross detector prevents click noise 4-input Selector Loudness Tone Control Bass/Mid/Treble Master Volume/Fader Volume Serial Data Control Outline 42P2R Recommended Operating Conditions Supply voltage range.
  • Vcc=6 ~ 9V VDD=4 ~ 6V Rated supply voltage.
  • Vcc=8V VDD=5V Block Diagram Lch Front IND2 INC2 INB2 INA2 Bass/ Mid/ Treble Fader Volume & Loudness Zero Cross Detector Zero Cross De.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M624 VOLTAGE CONTROLLED SAW OSCILLATOR Integrated Circuit Systems
M62412P 2Ch 4-Mode Preset Equalizer Mitsubishi Electric
M62414SP 2-Channel Electronic Volume Mitsubishi Electric
M62415 2CH 4 Mode Preset Equalizer Mitsubishi Electric
M62417SP Digital Sound Controller Mitsubishi Electric

Other Datasheets by Mitsubishi Electric

Part Number Description
M62440FP ELECTRIC VOLUME CONTROL
M62443FP SOUND CONTROLLER
M62443SP SOUND CONTROLLER
M62444FP 4CH ELECTRIC VOLUME
M62445 DIGITAL SOUND CONTROLLER

Full PDF Text Transcription

Click to expand full text

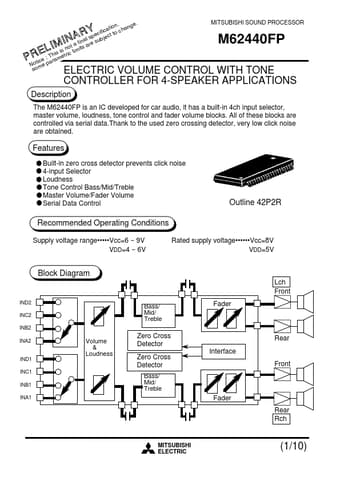

PR n. ge. atio chan c i f to ci spe bject l a u fin re s ot a its a n s is c lim Thi metri ; tice ara No me p o s IM EL R A N I Y MITSUBISHI SOUND PROCESSOR M62440FP ELECTRIC VOLUME CONTROL WITH TONE CONTROLLER FOR 4-SPEAKER APPLICATIONS Description The M62440FP is an IC developed for car audio, it has a built-in 4ch input selector, master volume, loudness, tone control and fader volume blocks. All of these blocks are controlled via serial data.Thank to the used zero crossing detector, very low click noise are obtained.
