M624 VOLTAGE CONTROLLED SAW OSCILLATOR

M624 Description

Integrated Circuit Systems, Inc.Product Brief M624 VOLTAGE CONTROLLED SAW OSCILLATOR PIN ASSIGNMENT (0.6 x 0.8 inch SMT) GND GND GND 7 GENERAL DE.
The M624 is a VCSO (Voltage Controlled SAW Oscillator) frequency source specifically designed for high-speed SONET/SDH applications for rates up to OC.

M624 Features

* VCSO center frequency from 500 to 625MHz
* Low phase noise -100dBc/Hz @ 1kHz offset
* Superior SAW jitter performance and aging;
* jitter 0.015ps rms typical (12kHz-20MHz) Excellent frequency stability and tuning linearity Low power con

M624 Applications

* for rates up to OC-768. Its integrated SAW (surface acoustic wave) delay line provides excellent phase noise performance and spectral purity, while requiring a low supply voltage (+3.3V). An extremely linear tuning range makes the M624 especially suited for phase-locked loop applications, which are

📥 Download Datasheet

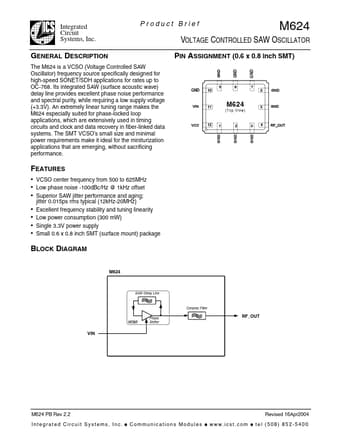

Preview of M624 PDF
