M62440FP - ELECTRIC VOLUME CONTROL

Product Overview

Mitsubishi

Part number	M62440FP
Manufacturer	Mitsubishi
File Size	94.98 KB
Description	ELECTRIC VOLUME CONTROL
Datasheet	M62440FP Datasheet

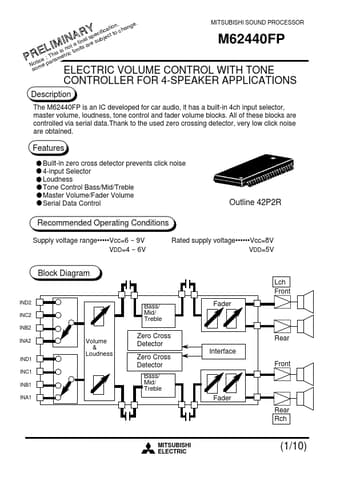

Additional preview pages of the M62440FP datasheet.

The M62440FP is an IC developed for car audio, it has a built-in 4ch input selector, master volume, loudness, tone control and fader volume blocks.

Built-in zero cross detector prevents click noise 4-input Selector Loudness Tone Control Bass/Mid/Treble Master Volume/Fader Volume Serial Data Control Outline 42P2R Recommended Operating Conditions Supply voltage range.
Vcc=6 ~ 9V VDD=4 ~ 6V Rated supply voltage.
Vcc=8V VDD=5V Block Diagram Lch Front IND2 INC2 INB2 INA2 Bass/ Mid/ Treble Fader Volume & Loudness Zero Cross Detector Zero Cross De.
