SYPS-3-12W-75+, SYPS-3-12W-75_Mini, Power Splitter/Combiner

Surface Mount Power Splitter/Combiner 3 Way-0° 75Ω Maximum Ratings Operating Temperature Storage Temperature Power Input (as a splitter) Internal Dis.

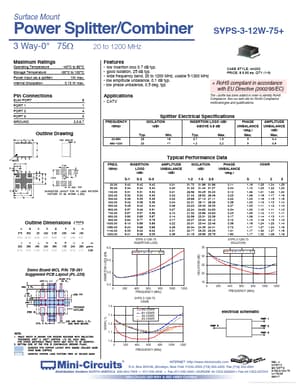

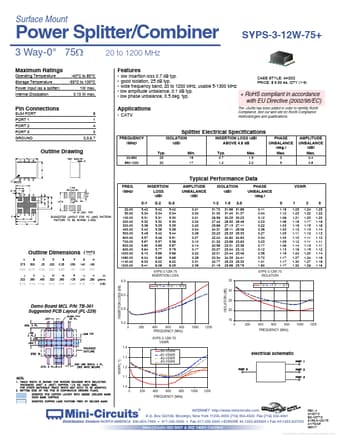

SYPS-3-12W-75_Mini-Circuits.pdf

SYPS-3-12W-75+ Datasheet Preview — This datasheet PDF includes multiple part numbers: SYPS-3-12W-75+, SYPS-3-12W-75_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SYPS-3-12W-75+, SYPS-3-12W-75_Mini

Manufacturer:

Mini-Circuits

File Size:

246.42 KB

Description:

Power Splitter/Combiner

Note:

This datasheet PDF includes multiple part numbers: SYPS-3-12W-75+, SYPS-3-12W-75_Mini.
Please refer to the document for exact specifications by model.

Features

* low insertion loss 0.7 dB typ.
* good isolation, 25 dB typ.
* wide frequency band, 20 to 1200 MHz, usable 5-1300 MHz
* low amplitude unbalance, 0.1 dB typ.
* low phase unbalance, 0.5 deg. typ. CASE STYLE: AH202 PRICE: $ 9.95 ea. QTY (1-9) + RoHS compliant i

Applications

* CATV Splitter Electrical Speciﬁcations FREQUENCY (MHz) Typ. 20-860 860-1200 25 20 ISOLATION (dB) Min. 18 17 INSERTION LOSS (dB) ABOVE 4.8 dB Typ. 0.7 1.2 Outline Drawing Max. 1.5 2.2 PHASE UNBALANCE (deg. ) Max. 3 5 AMPLITUDE UNBALANCE (dB) Max. 0.4 0.8 Typical Performance Data FREQ
