SYPJ-2-33+, SYPJ-2-33_Mini Datasheet - Mini-Circuits

SYPJ-2-33+, SYPJ-2-33_Mini, Power Splitter/Combiner

Power Splitter/Combiner 2 Way-180° Maximum Ratings Operating Temperature Storage Temperature Power Input (as a splitter) Internal Dissipation -40°C to.

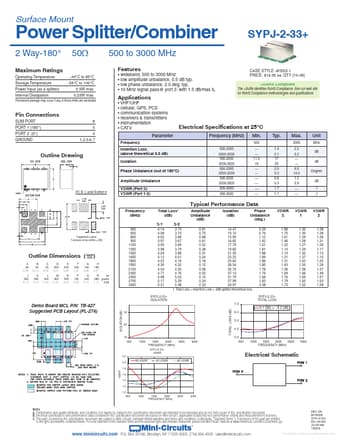

SYPJ-2-33_Mini-Circuits.pdf

SYPJ-2-33+ Datasheet Preview — This datasheet PDF includes multiple part numbers: SYPJ-2-33+, SYPJ-2-33_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SYPJ-2-33+, SYPJ-2-33_Mini

Manufacturer:

Mini-Circuits

File Size:

330.16 KB

Description:

Power Splitter/Combiner

Note:

This datasheet PDF includes multiple part numbers: SYPJ-2-33+, SYPJ-2-33_Mini.
Please refer to the document for exact specifications by model.

Features

* wideband, 500 to 3000 MHz
* low amplitude unbalance, 0.5 dB typ.
* low phase unbalance, 2.0 deg. typ.
* 10 MHz signal pass@ port 2: with 1.5 dB/max IL +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qua

Applications

* Pin Connections SUM PORT PORT 1 (180°) PORT 2 (0°) GROUND 8 5 4 1,2,3,6,7
* VHF/UHF
* cellular, GPS, PCS
* communication systems
* receivers & transmitters
* instrumentation
* CATV Parameter Frequency Insertion Loss (above theoretical 3.0 dB) Isolati
