SYPD-1, SYPD-1_Mini, Phase Detector

Phase Detector 50Ω High Output -40°C to 85°C -55°C to 100°C 50mW 20mA Surface Mount SYPD-1+ SYPD-1 1 to 100 MHz .

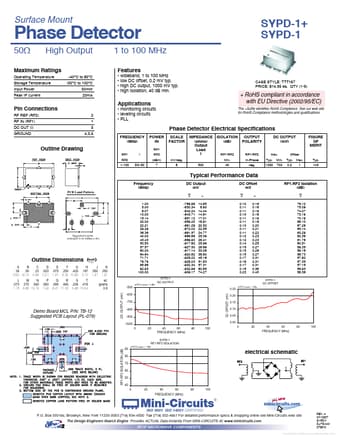

SYPD-1_Mini-Circuits.pdf

SYPD-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: SYPD-1, SYPD-1_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SYPD-1, SYPD-1_Mini

Manufacturer:

Mini-Circuits

File Size:

214.25 KB

Description:

Phase Detector

Note:

This datasheet PDF includes multiple part numbers: SYPD-1, SYPD-1_Mini.
Please refer to the document for exact specifications by model.

Features

* wideband, 1 to 100 MHz
* low DC offset, 0.2 mV typ.
* high DC output, 1000 mV typ.
* high isolation, 40 dB min. Maximum Ratings Operating Temperature Storage Temperature Input Power Peak IF current CASE STYLE: TTT167 PRICE: $14.95 ea. QTY (1-9) Pin Connections RF

Applications

* + RoHS compliant in accordance with EU Directive (2002/95/EC) The +Sufﬁx identiﬁes RoHS Compliance. See our web site for RoHS Compliance methodologies and qualiﬁcations.
* monitoring circuits
* leveling circuits
* PLL Phase Detector Electrical Speciﬁcations FREQUENCY (MHz)
